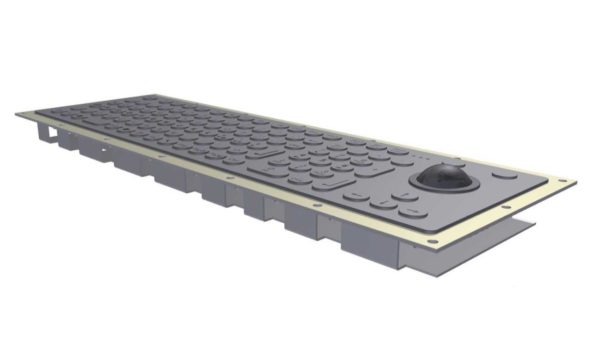

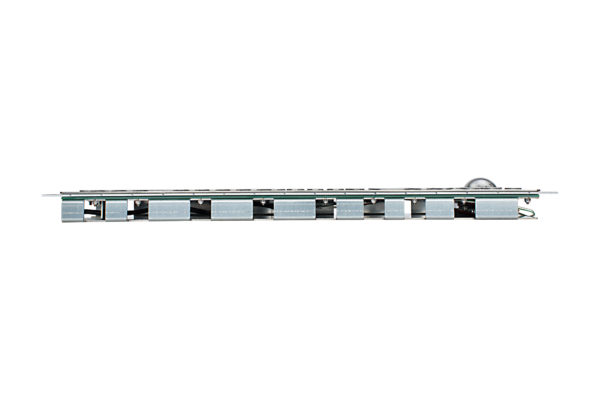

FIT.105E16.R-TI is a ruggedized metal keyboard for rear mounting. Mounting holes enable the easy integration in systems and devices. With 105 keys the metal keyboard possess a complete layout which includes a num block. Common language layouts are available off-the-rack; others are realized on request without extra fee. The switching principle follows Grafos Steel´s FIT technology. Full made-to-measure keyboards can be realized from one piece.
The FIT.105E16.R-TI is dedicated for use in harsh environments such as self service terminals, work stations in the heavy industry or in the defense sector. The construction of the keyboard ensures a vandal proof application.
Technical info
| Keyboard technologies | FIT |
|---|---|
| Number of keys | |
| Key shape | |
| Fitting | |
| Pointing device | |
| Interface | |
| Symbols | |
| Application | A (Industrial Automation), I (Information Points), K (Multimedia Kiosk), M (Military Equipment) |
| Material | Stainless steel AISI316L 2,00 mm thickness for keys and front panel |
| Key travel | 1,5 mm +/- 0,1 mm |
| Actuation force | 1,5 N (typical) |
| Number of operations | >2.000.000 operations |
| Contacts technologies | Graphite pad on golden contacts printed circuit |
| Maximun contact resistance | < 100 Ohm |
| Isolation | >500K Ohm |
| Maximum voltage and current | 50mA, 25V ac/dc |
| IP degree | IP65 |
| Protection degree | IK08 |
| Working temperature range | 0°C/+50°C |
| Storage temperature range | -25°C/+55°C |
| Language Layout | DE, ES, FR, IT, US |
